Hangleválasztó, Techly HDMI-Audio Extractor , SPDIF, RCA, 2.0/5.1

IDATA HDMI-EA lets you extract the audio signal from the HDMI source and convert it to analog RCA SPDIF + R / L audio.

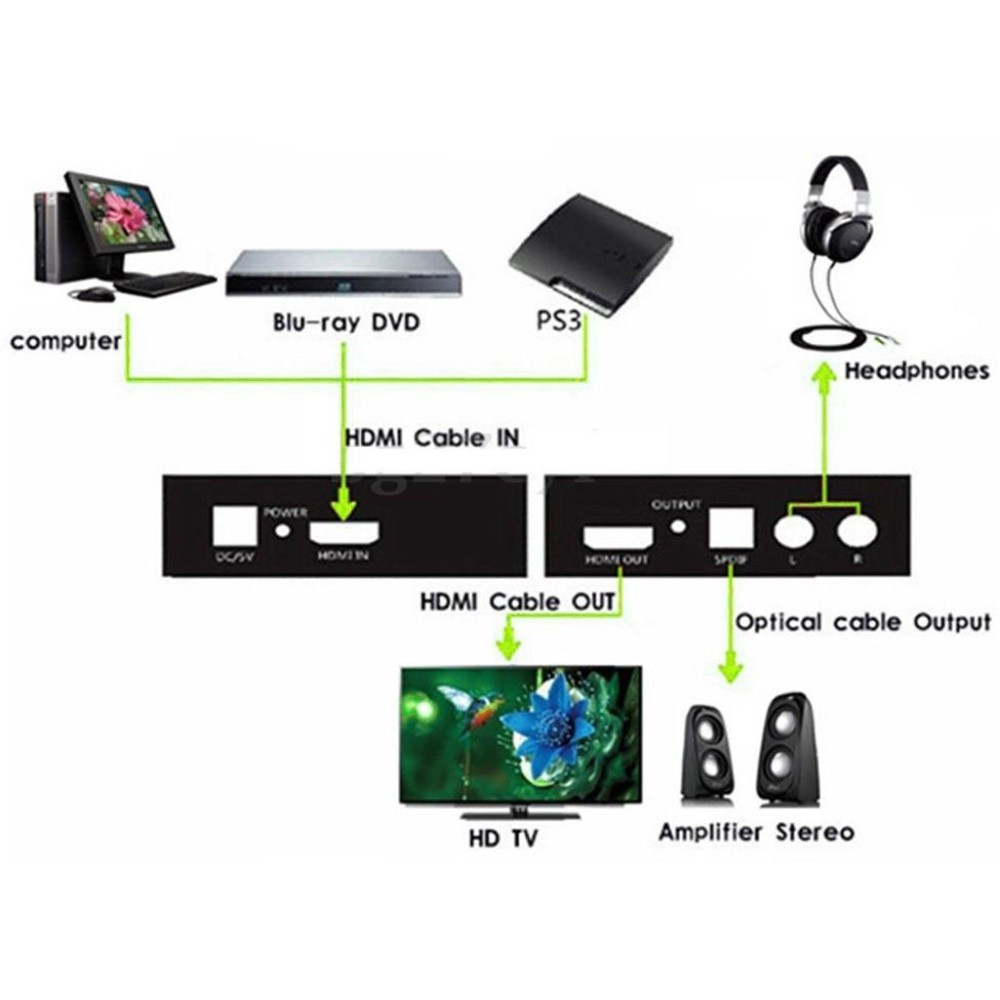

It allows you to easily send the HDMI video signal to a TV, projector or monitor and send the HDMI audio signals to external speakers.

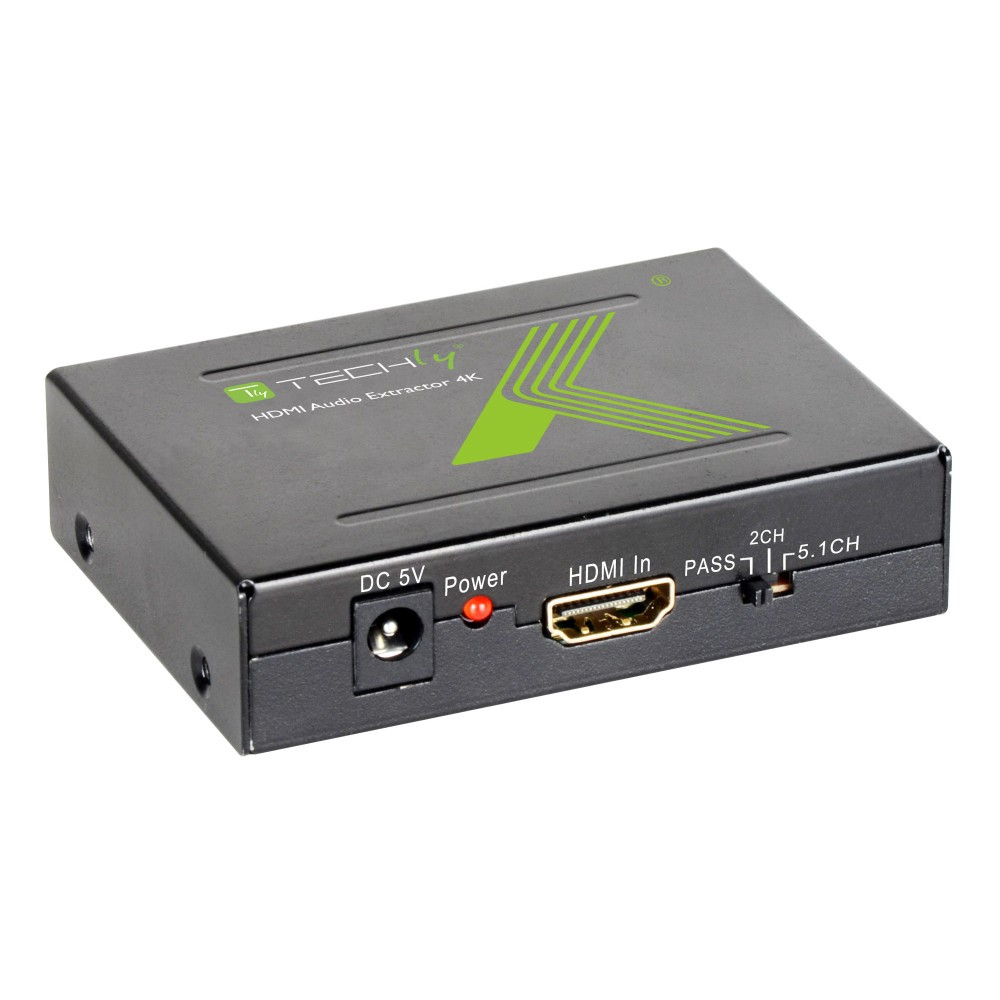

Sound mode

• ADV: The HDMI signal (audio + video) is simply looped-through via the device, no division is made between video and audio
• 2.0CH: the HDMI signal is converted to Toslink and RCA (stereo, R / L)
• 5.1CH: conversion according to Toslink 5.1 (Dolby Digital 5.1)

Features

• Separates by the HDMI audio signal and provides the separately
• HDMI audio conversion Toslink and RCA audio (R / L)
• The HDMI video signal is looped-through output devices
• Supports resolutions up to 4Kx2K@60Hz
• With LED activity indicator
• Quick installation
• 5V 2A power supply included

Technical Specifications

• Video Bandwidth: 18Gbps
• HDMI resolution: up to 4Kx2K@ 50/60Hz (YUV 4:4:4), 4Kx2K@30Hz, 1080p@120Hz and 1080P 3D@60Hz
• Supported color space: RGB, YCbCr4:4:4, YCbCr4:2:2
• Color depth: 10-bit, 12-bit

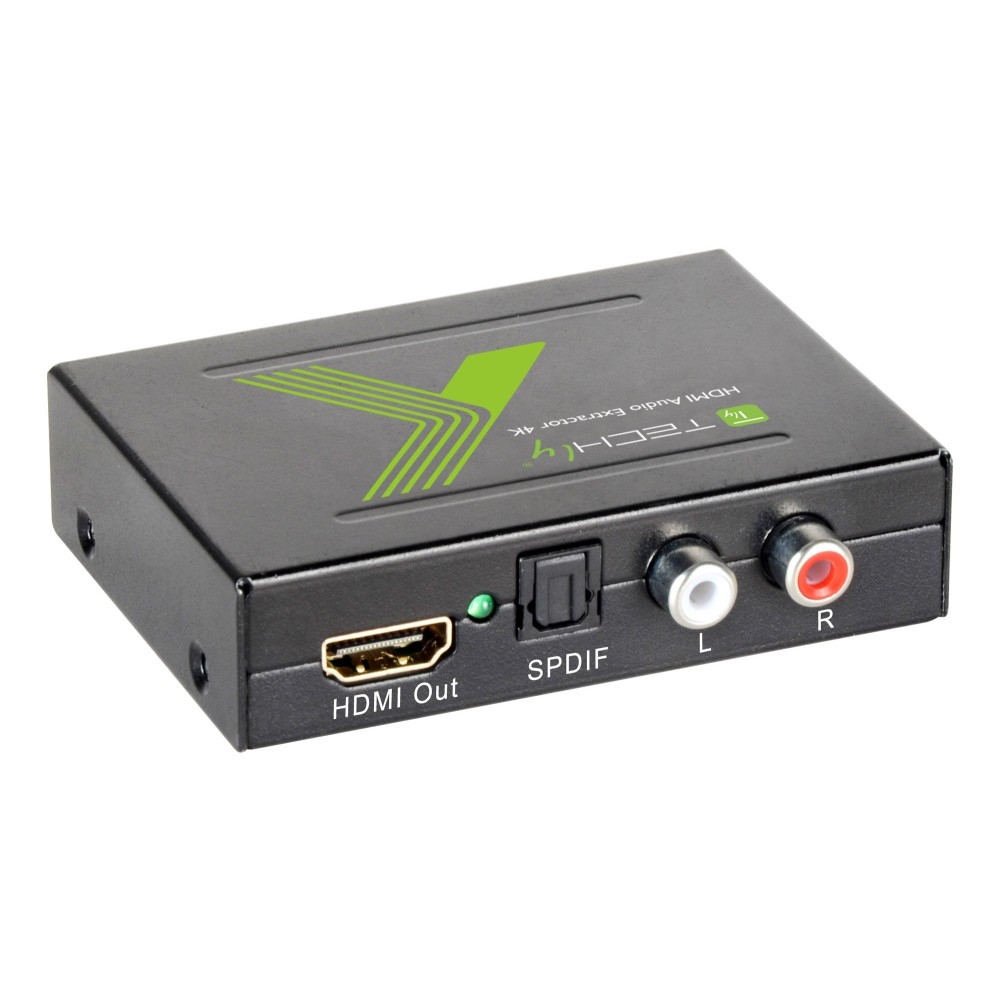

• Audio outputs: L/R+SPDIF
• HDMI audio formats (pass-through): LPCM 2/5.1/7.1CH, Dolby Digital 2-5.1CH, DTS 2-5.1CH, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
• Digital audio formats: LPCM 2CH, Dolby Digital 2-5.1CH and DTS2-5.1CH
• L/R audio formats: 2CH Analog Stereo

Power Supply

• Input: AC 100V-240V (50 / 60Hz)
• Output: DC5V / 2A

Environmental Features

• Operating temperature: -15 / + 55 ° C
• Operating Humidity: 5/90% non-condensing

Dimensions

• Width: 77 mm
• Depth: 63 mm
• Height: 22 mm
• Weight: 135 g

Certifications

• CE
• WEEE

Package Contents

• Audio Extractor IDATA HDMI-EA
• 5V 2A
• User's manual
